PRODUCT DESCRIPTION
Tips for not accurate measurement:
To measure small capacitance, different measurement principles and different measurement frequencies will lead to different measurement results.
The resistance component affects the accuracy, and the measurement results need to be subtracted from the data displayed before the measurement.

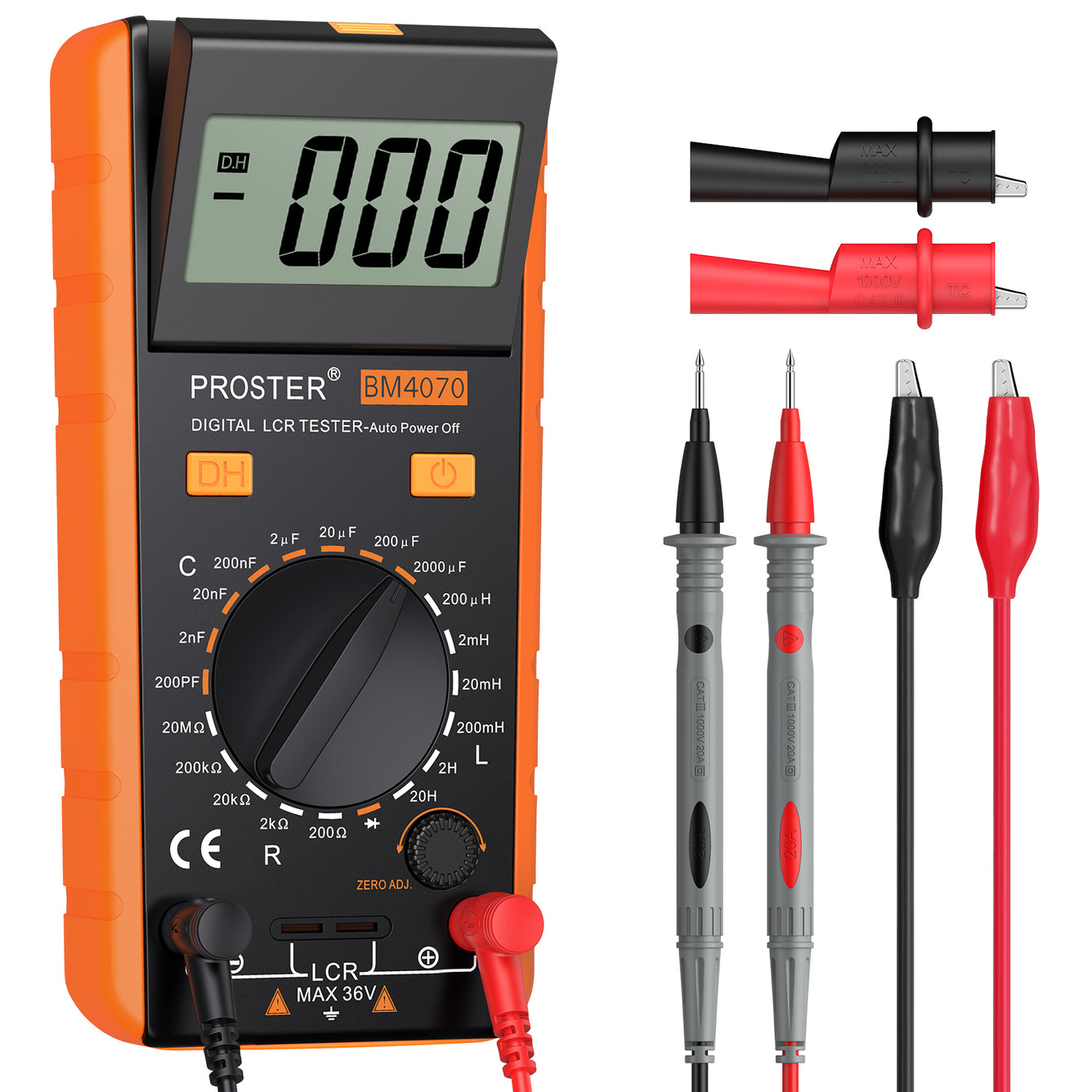

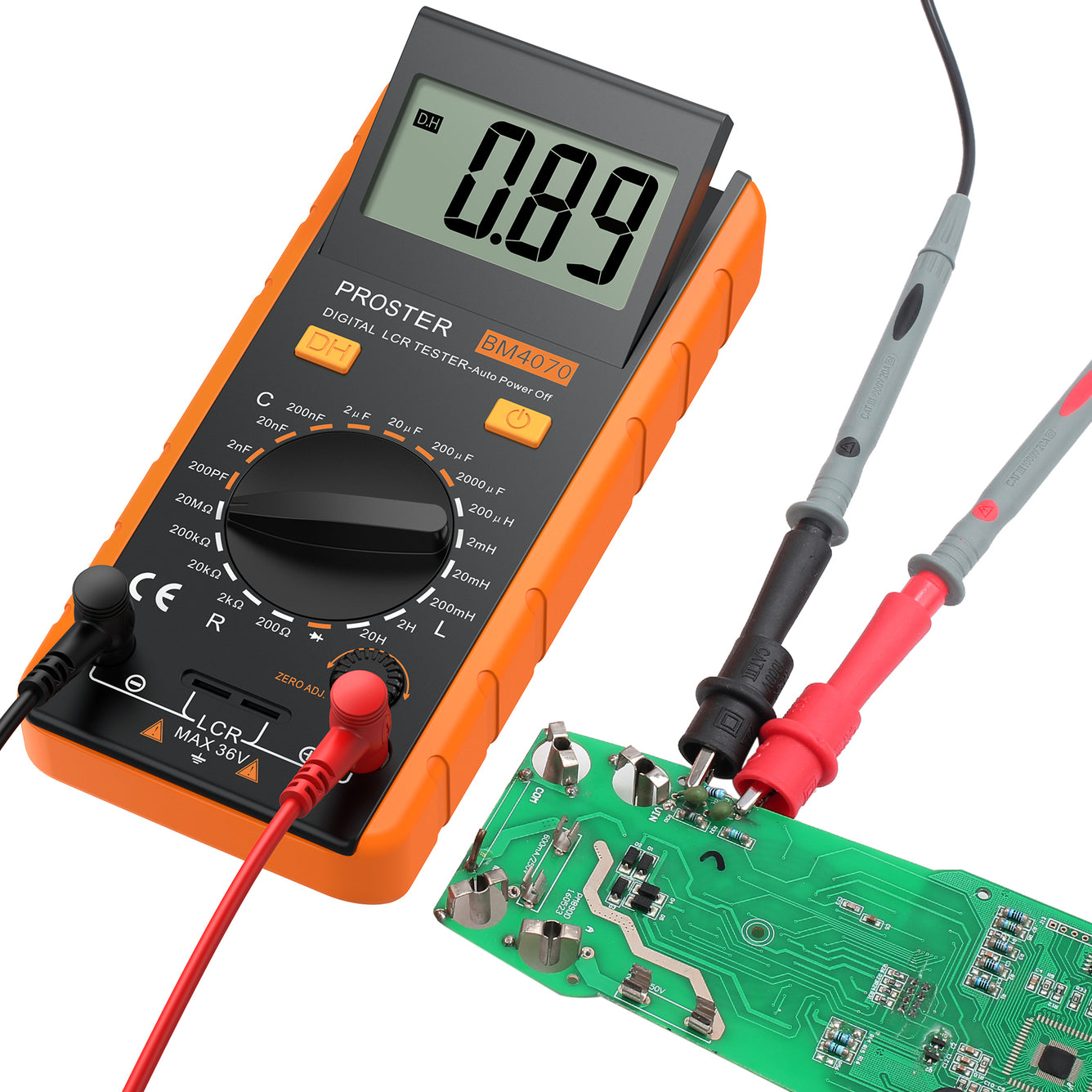

When measuring small inductors and capacitors, if the component feet are suitable, it is recommended not to use the test leads. Please just insert component feet directly into two rectangular jacks of LCR Meter to measure.
1.Measuring method: Double integral A/D conversion.
2. Sampling rate: 3 times per second
3. Over range display: "1"at the higgest digit

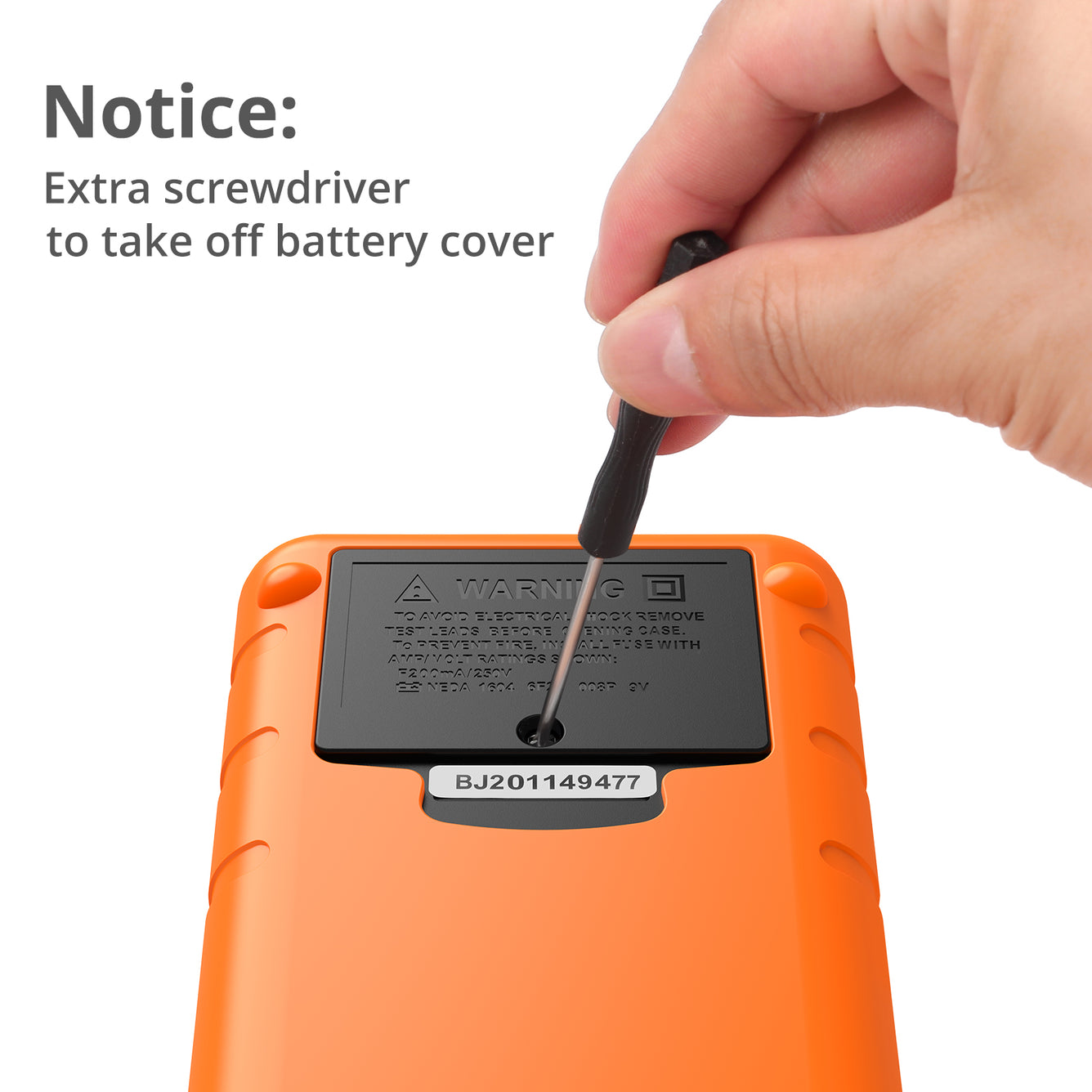

4.Instruction for low voltage of battery
5.Auto power off and Data Hold function

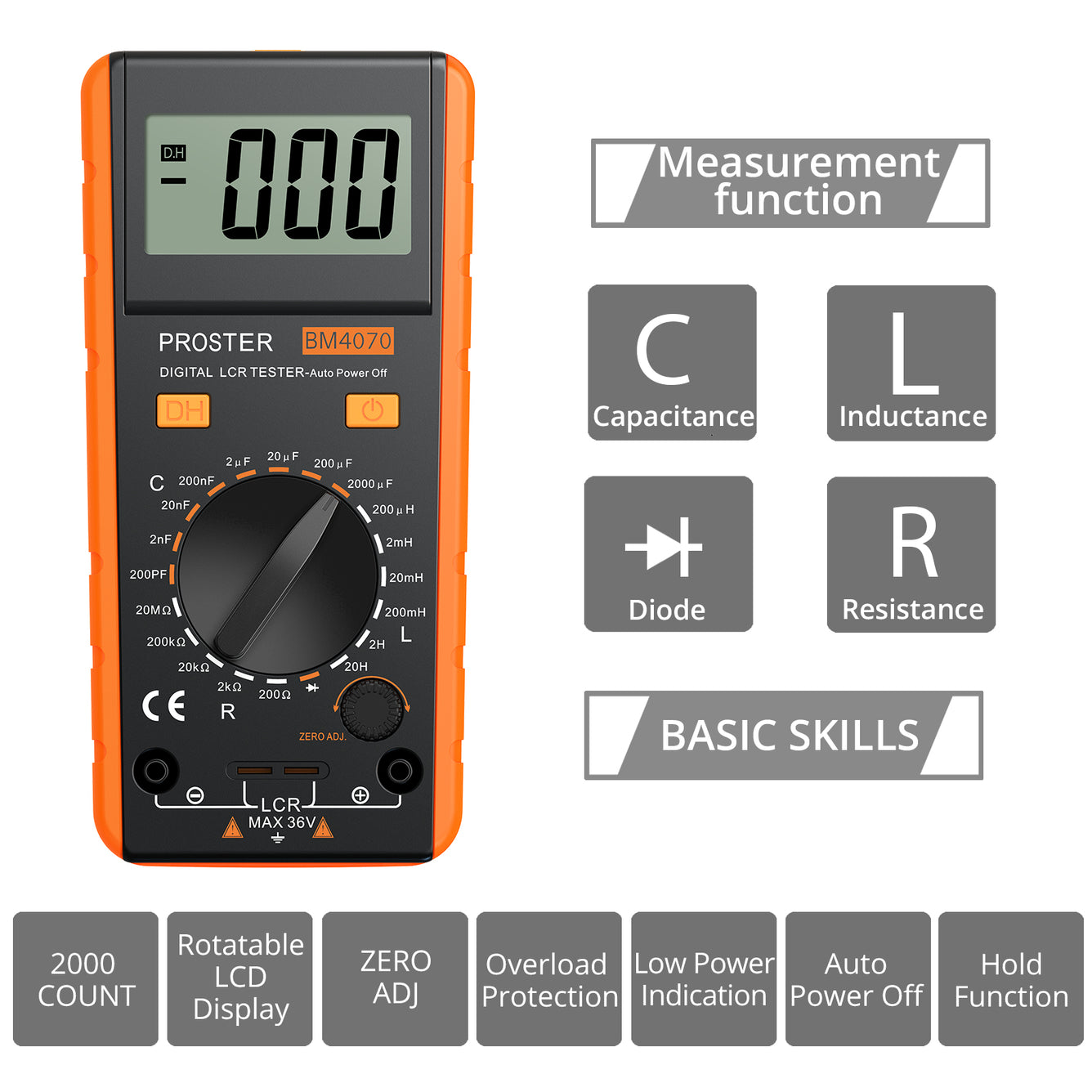

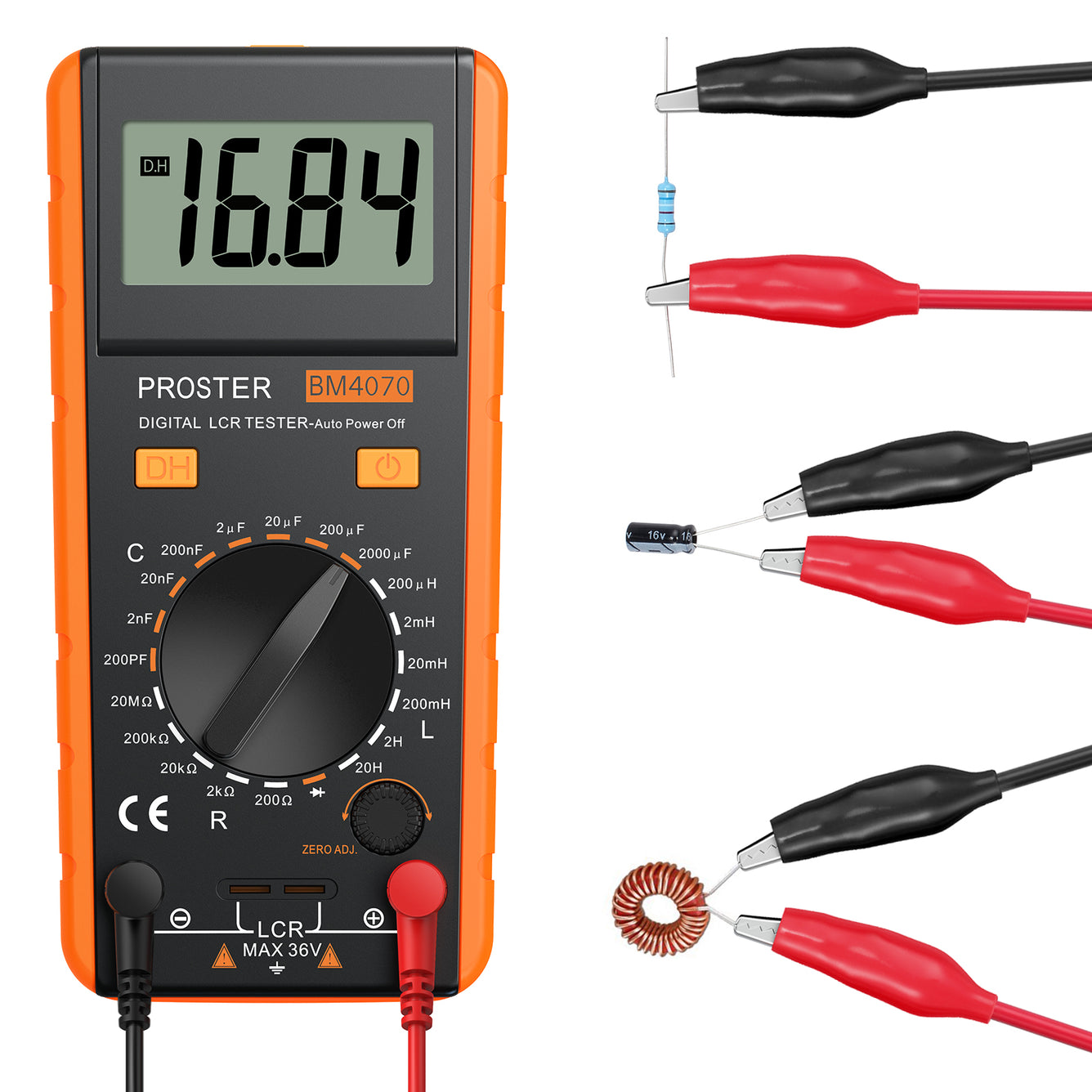

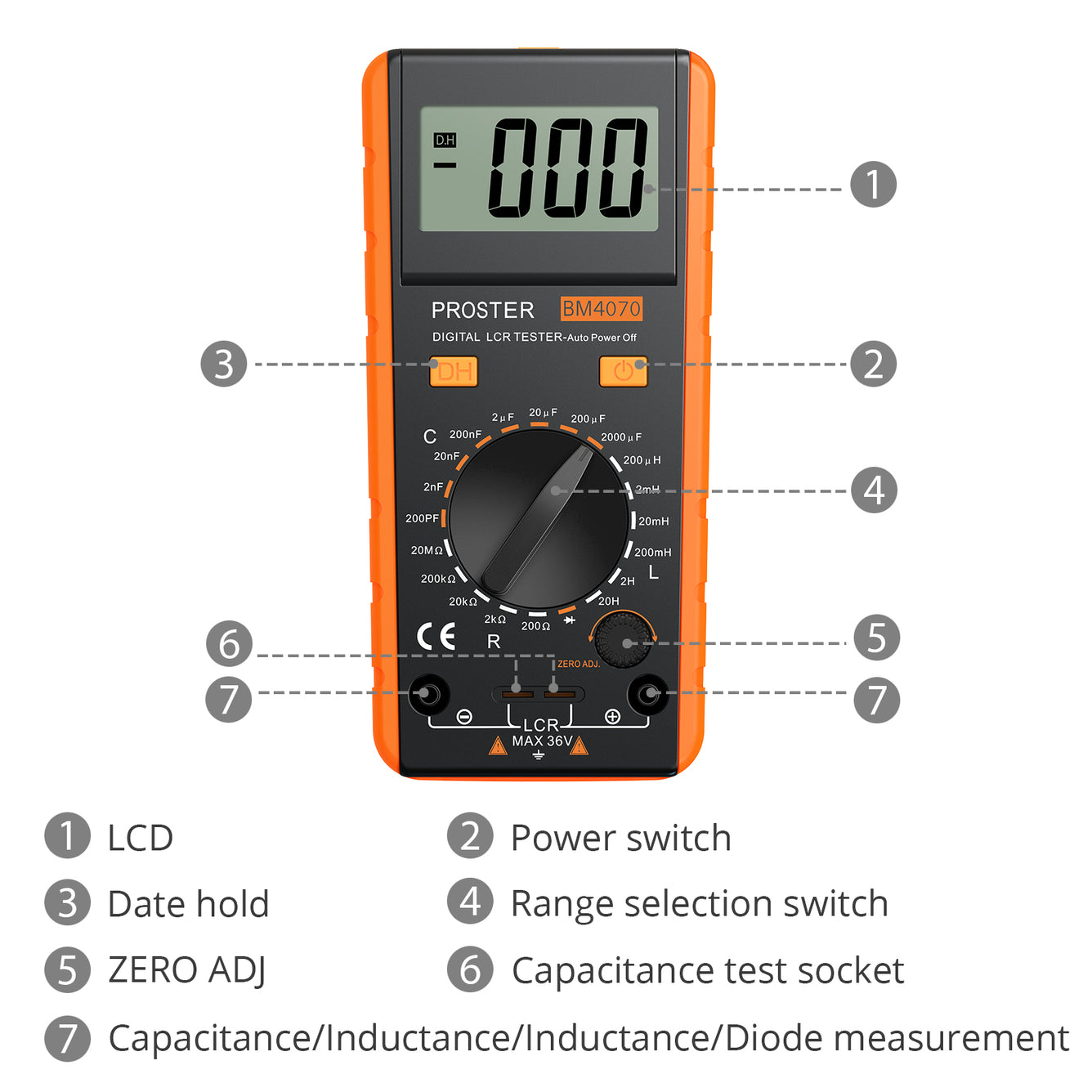

Proster LCR Meter: Inductance (L); Capacitance (C); Resistance (R)
Inductance (L): 200uH-20H, up to accuracy: ± 2.5% (μH=10-6H; mH=10-3H);
Resistance (R): 200Ω-20MΩ, accuracy up to: ±0.8%;
Capacitance (C): 200pF-2000uF, accuracy up to: ± 2.5% (PF=10-12F;nF=10-9F;μF=10-6F;mF=10-3F);
Note: If you are measuring a patch component (SMD), the shorter the measurement line, the more accurate the measurement.
Range:200uH;Accuracy±(3%+5);Resolution:0.1uH
Range:2mH;Accuracy±(2%+5);Resolution:1uH
Range:20mH;Accuracy±(2%+5);Resolution:10uH
Range:200mH;Accuracy±(2%+5);Resolution:100uH
Range:2H;Accuracy:±(2%+5);Resolution:1mH
Range:20H;Accuracy±(5%+5);Resolution:10mH
Range:200Ω;Accuracy±(0.8%+2);Resolution:0.1Ω
Range:2KΩ;Accuracy±(0.8%+2);Resolution:1Ω
Range:20KΩ;Accuracy±(0.8%+2);Resolution:10Ω
Range:200KΩ;Accuracy±(0.8%+2);Resolution:100Ω
Range:200MΩ;Accuracy±(1.5%+5);Resolution:10KΩ
Range:200pF;Accuracy±(2.5%+5);Resolution:0.1pF
Range:2nF;Accuracy±(2.5%+5);Resolution:1pF
Range:20nF;Accuracy±(2.5%+5);Resolution:10pF
Range:200nF;Accuracy±(2.5%+5);Resolution:100pF
Range:2uF;Accuracy±(2.5%+5);Resolution:1nF
Range:20uF:Accuracy±(2.5%+5);Resolution:10nF
Range:200uF;Accuracy±(2.5%+5);Resolution:100nF
Range:2000uF;Accuracy±(5%+5);Resolution;1uF
