1. This Auto Range Digital LCD Multimeter is strong antimagnetic and anti-jamming, with high precision and high performance.
2. It can be used to measure DC and AC voltage, AC and DC current, resistance, capacitance, frequency, non-contact AC voltage sensing, temperature, diode and circuit continuity.
3. Large size backlight LCD display, unit symbol display, easy to read.
4. With a bracket on the back, convenient to place it on the table and read the values. Besides, it comes with a bag, convenient for carrying.
Basic Function: DCV, ACV, DCA, Resistance, Capacitance, Centigrade temperature
Special Function: Non-contact AC voltage sensing, Diode test, hFE test, Continuity test, Temperature test, Low battery indication, Duty cycle measuring, Data hold, Auto power off, Function protect.
Max display: 4000 (3 3/4) digits, automatic polarity and unit symbol display
Operation way: auto range
Measurement method: double integral A/D conversion
Working environment: (0～40)°C, relative humidity: <80%
Store condition: (-10～50)°C, relative humidity: <80%
Power supply: 2pcs 1.5V battery ("AAA"7# battery)
Display: LCD Display with Backlight, 4000 counts
DCV: 400mV/4V/40V/400V/1000V, +/- (0.5%+4)
ACV: 4V/40V/400V/1000V, +/- (0.8%+6)
DCA: 400uA/4000uA/40mA/400mA/20A, +/- (1.0%+5)
ACA: 400uA/4000uA/40mA/400mA/20A, +/- (1.5%+5)
Resistance: 400Ω/4kΩ/40kΩ/400kΩ/4MΩ/40MΩ, +/- (0.8%+1)
Capacitance: 4nF/40nF/ 400nF/4uF/40uF/200uF, +/- (3.5%+8)
Frequency: 100Hz/1kHz/10kHz/100kHz/1MHz/30MHz, +/- (0.5%+4)
Centigrade temperature: -40~1000°C, +/- (10%+5); 0F~1832℉, ±(1.0%+5)
1. Operation way:Manual or auto range
2. NCV: √; Diode test:√; hFE test:√; Backlight: √
3. Continuity test: Approx.less than 30Ω+/- 10Ω
4. Low battery indication: Approx less than 2.4V
5. Duty cycle measuring: √; Data hold:√; Auto power off: Approx.15minutes; Function protect:√
6. Input impendence: 10MΩ
7. Sampling rate:3times/s
8. AC frequency response: 40-400Hz
9. Battery:1.5V AAA×2 pcs (included)
10. Power dissipation: Quiescent current approx.2mA
Proster multimeter can make you test faster, safer, and easier.
Test Probes Slot
It is very convenient to place and keep the test probes.
Two temperature measuring modes:
The temperature of the surrounding environment can be measured directly;
The temperature of the liquid can be measured with a probe.

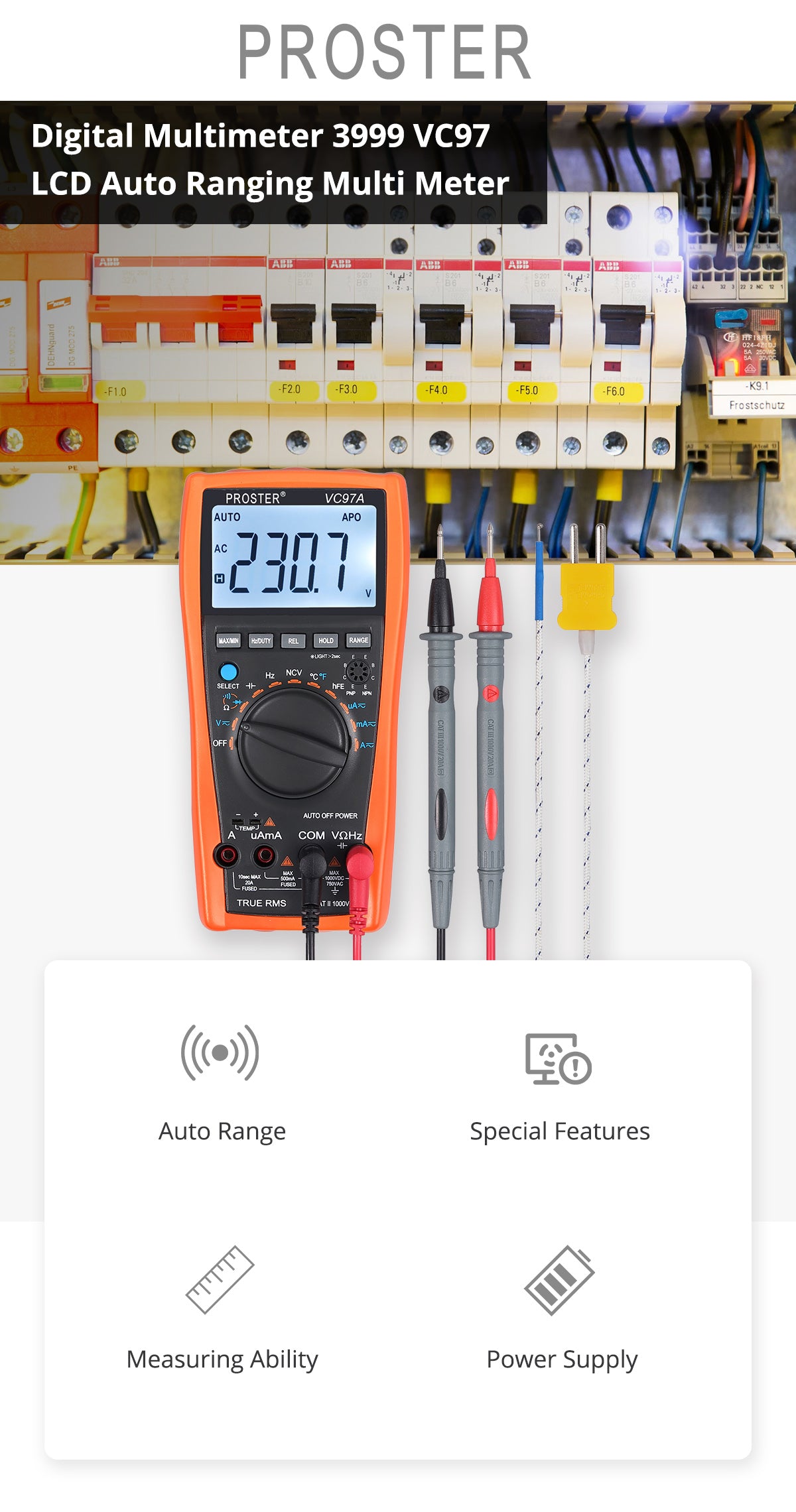

Large LCD Screen
This multimeter provides LCD Display with a maximum reading of 3999 and up to 2000uF.
Color--Body: dark grey, holster: orange
