Product description
Specifications:
DC Voltage Range and Accuracy: 600mV/6V/60V/600V ±(0.5%+3), 1000V ±(0.5%+3)
AC Voltage Range and Accuracy: 6V/60V ±(1.0%+5), 600V/750V ±(1.0%+5)
DC Current Range and Accuracy: 60μA/60mA/600mA ±(0.8%+3), 10A ±(1.2%+3)
AC Current Range and Accuracy:60mA/600mA ±(1%+3), 10A ±(1.5%+3)
Resistance Range and Accuracy: 600Ω/6KΩ/60KΩ/600KΩ/6MΩ /60MΩ ±(0.8%+3)

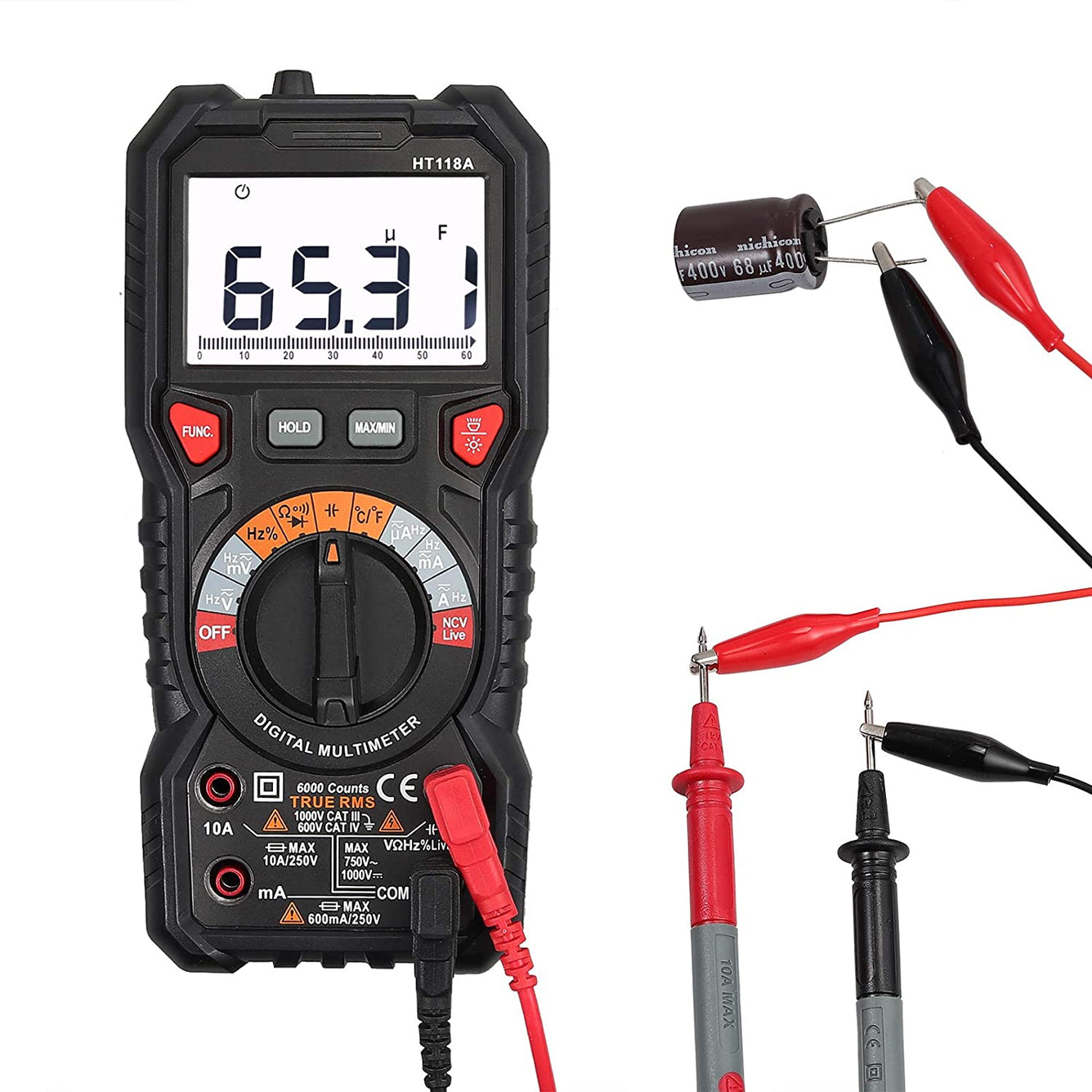

Capacitance Range and Accuracy: 6nf/60nf/600nf/6uf/60uf/600uf/6MF (±4.0%+3), 100MF ±(5.0%+5)
Frequency Range and Accuracy: 10Hz/100Hz/1kHz/10kHz/100kHz/1MHz/10MHz ±(1.0%+3)
Temperature Range and Accuracy: -40℃-1000℃/-40℉-1832℉ ±(1.0%+3) Duty cycle: 1%~99% ±(1.0% +2)
Display: 6000 counts
Auto/Manual Range √
True RMS √
AC Voltage Bandwidth 1 kHz
Continuity √ high, medium, low (LED signal intensity indication)
Data hold: √
Back light: √
Flashlight: √
Diode test: √
Triode test: √
Continuity: √
Over load protection:√
Low Battery Indication: √
Auto Power Off: √
Short-circuit protection: √
General Specifications:
Power Supply: 2 x 1.5V AA ( included )

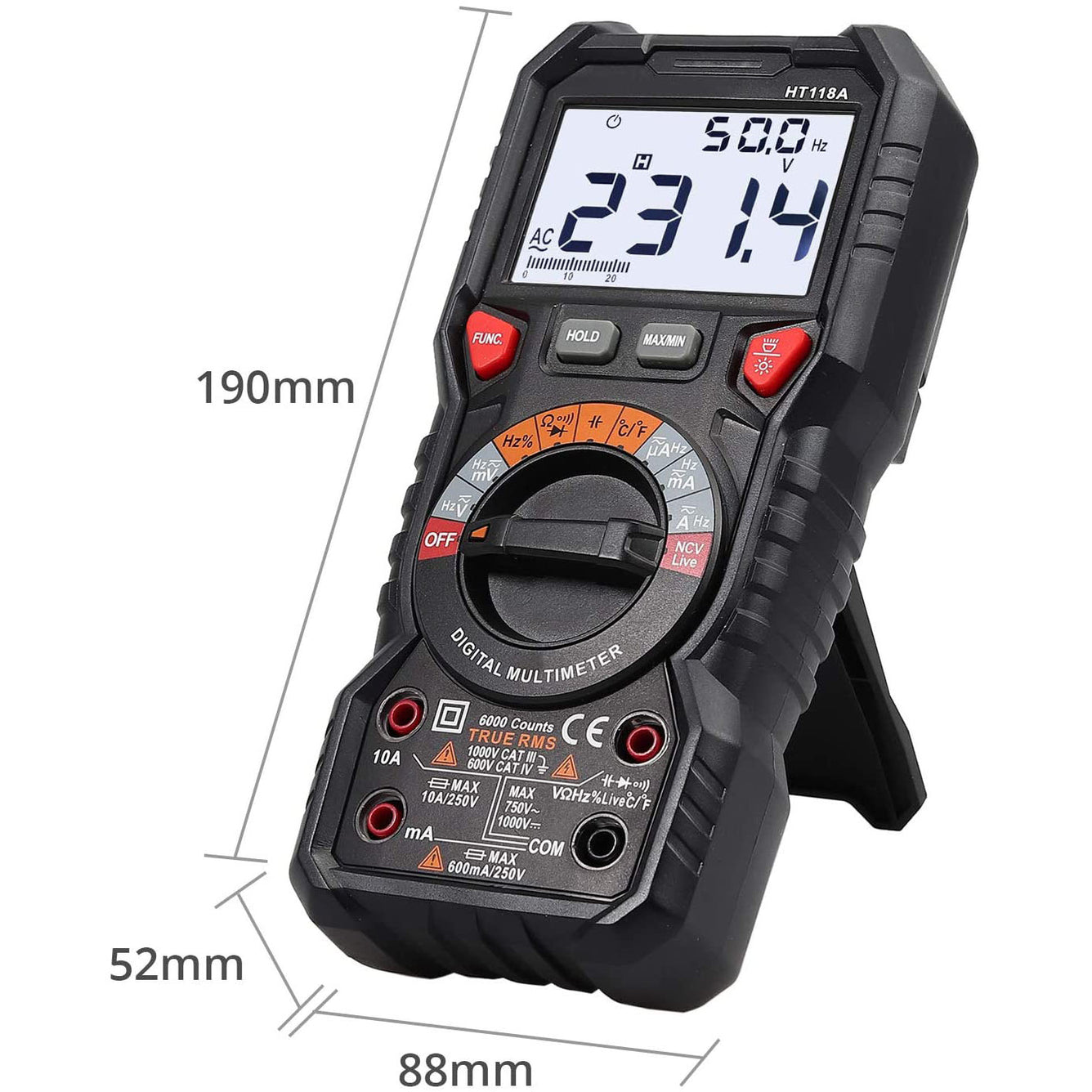

Dimensions: 188mmx 88mm x 58mm
Safety Rating: EN61010-1,-2-030 EN61010-2-033, EN61326-1 CAT III 1000V CAT IV 600V CE、ROHS

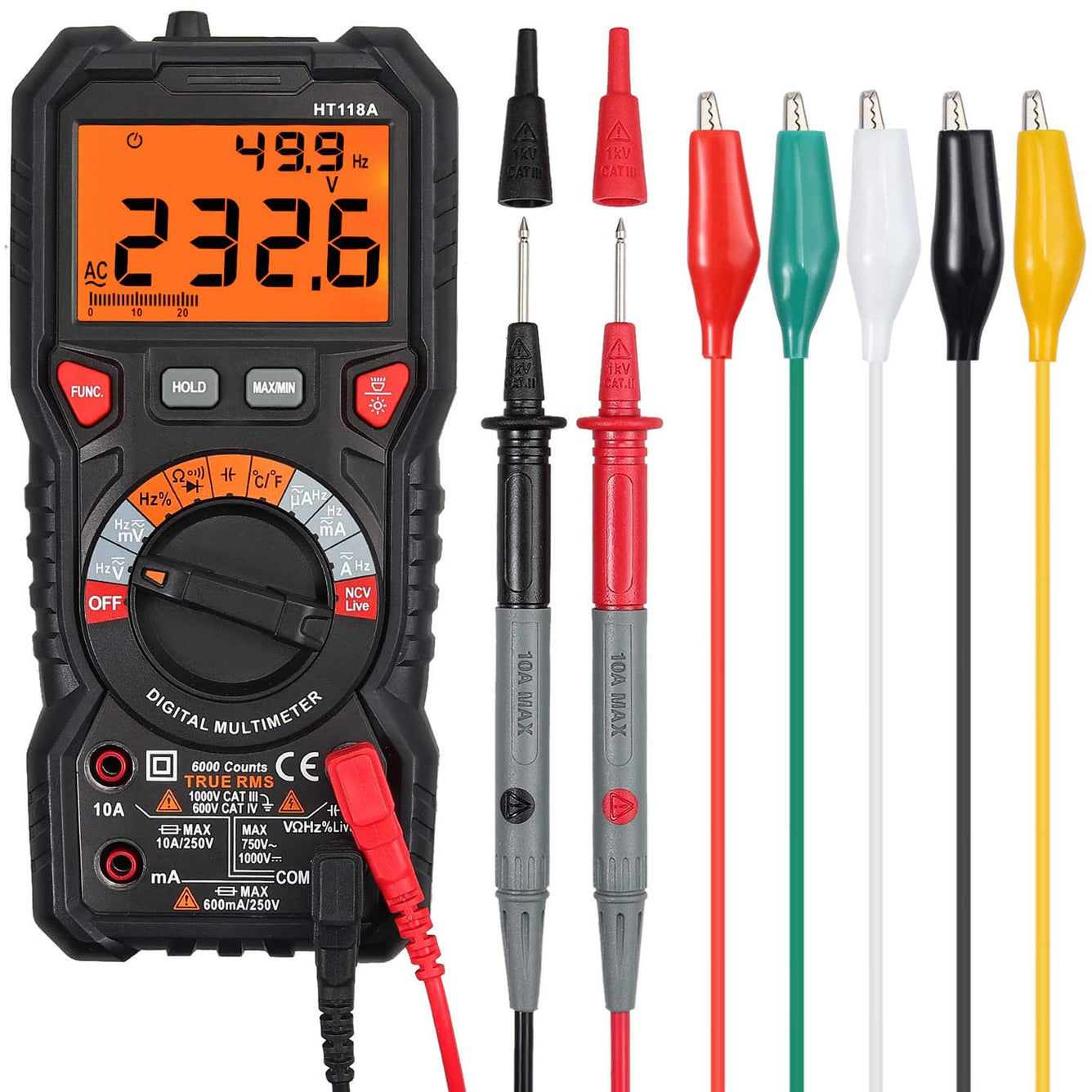

Package Include:
1x Digital Multimeter
1x Test Leads (pairs)
1 x K-Type Temperature Probe
2 x 1.5V AA Battery
1x User's Manual
10 x Test Lead Set with Alligator Clips
2. 5% discount on orders over $20.
3. All products are sold 100% authentic.
4. 48 hours delivery, 5-10 working days can be delivered.
5. Free 30-day return and 18-month warranty.
6. Note: If you need to purchase multiple pieces or cooperate, please contact us in advance.
